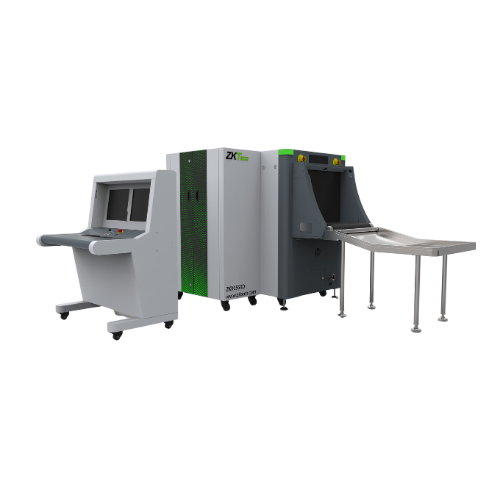

ZKTeco ZKX6550D Dual-View X-Ray Inspection System

The ZKX6550D is a dual-view X-ray inspection system designed to provide exceptional threat detection and object recognition accuracy. With two separate X-ray generators and imaging systems—one from the top and one from the side—it offers superior image clarity and eliminates blind spots, making it ideal for security-critical environments such as airports, government buildings, and transport hubs.

This system supports efficient screening of hand luggage, parcels, and medium-sized baggage while providing operators with multi-angle views for better judgment and analysis.

Key Features:

• Dual-view X-ray imaging (top-down and side view) for enhanced detection capability
• High-penetration and resolution imaging for accurate identification of concealed objects
• High throughput with reliable conveyor belt movement and image processing speed
• Enhanced image algorithms including organic/inorganic material distinction, high-density alert, and auto image archiving
• User-friendly operator interface with intuitive controls and real-time display
• Radiation-safe and compliant with international health and safety standards

Technical Specifications:

• Tunnel Size: 650mm (W) × 500mm (H)
• Conveyor Speed: 0.20 m/s
• Max Load Capacity: 165 kg
• Penetration: Up to 35mm steel (each view)
• Wire Resolution: 38 AWG
• Generator Orientation: One vertical and one horizontal (dual-view)

• Image Processing Features:

1. Edge enhancement
2. Organic/Inorganic stripping
3. High penetration mode
4. Pseudo color & black and white
5. Image review, zoom, and auto-save

• Image Storage Capacity: 100,000+ images
• Monitor: 21.5” high-definition LED display
• Radiation Safety: Less than 1 μSv/h (meets international standards)
• Operating Environment: 0°C ~ 45°C, ≤95% RH (non-condensing)
• Power Supply: AC 220V ±10%, 50/60Hz

Typical Applications:

• Airports and railway stations
• Government facilities
• Courthouses and correctional institutions
• Corporate mailrooms and logistics
• Event security checkpoints
• Border and customs control
