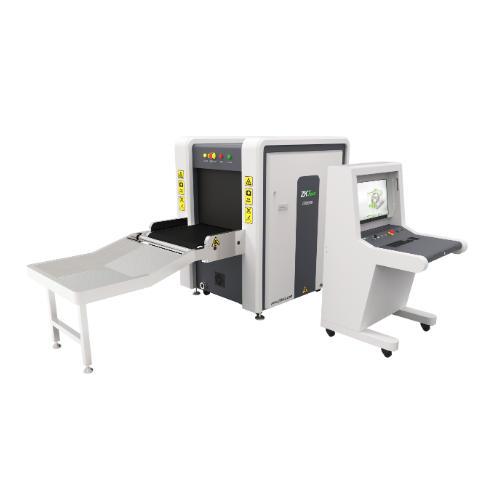

ZKTeco ZKX6550A X-Ray Inspection System

The ZKX6550A is a compact and efficient X-ray inspection system engineered for high-security environments requiring accurate and rapid scanning of baggage, parcels, and other hand-carried items. It uses a single-energy X-ray source and delivers high-resolution images that enable precise threat detection with low false alarm rates. The system is widely used in airports, transportation terminals, courthouses, and corporate security areas.

Key Features:

• High-definition X-ray imaging for clear object identification
• Compact design suitable for limited-space environments
• Advanced image enhancement tools including organic/inorganic stripping
• Real-time imaging and auto archiving of scanned objects
• Compliant with international radiation safety standards
• Simple and intuitive interface designed for fast operator training

Technical Specifications:

• Tunnel Size: 650mm (W) × 500mm (H)
• Conveyor Speed: 0.22 m/s
• Max Load Capacity: 165 kg
• Penetration Ability: Up to 38 mm of steel
• Wire Resolution: 38 AWG
• Spatial Resolution:

1. Horizontal: 1.0 mm
2. Vertical: 1.0 mm

• Image Processing Features:

1. Organic/Inorganic stripping
2. High penetration mode
3. Edge enhancement
4. Pseudo color display
5. Image recall, zoom, pan, and storage

• Image Storage: Over 100,000 images
• Monitor: 21.5” high-resolution LCD
• Radiation Safety: Less than 1 μSv/h (meets health and safety regulations)
• Power Supply: AC 220V ±10%, 50/60Hz
• Operating Temperature: 0°C ~ 45°C
• Relative Humidity: ≤95% non-condensing

Applications:

• Security checkpoints at airports and train stations
• Corporate and government facilities
• Customs and border control
• Event venues and courthouses
• Critical infrastructure protection
