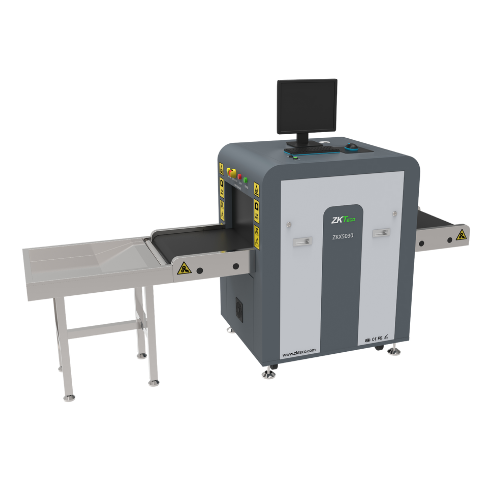

ZKTeco ZKX5030A X-Ray Inspection System

The ZKX5030A is an advanced single-energy X-ray inspection system specifically designed for the detection of prohibited items in small parcels, handbags, and briefcases. Its compact size and powerful imaging capabilities make it an ideal choice for checkpoints with limited space but demanding security needs. The system enhances the operator’s ability to identify potential threats through high-penetration performance, intuitive image processing tools, and a user-friendly interface.

Key Features:

• High-quality single-energy imaging with clear material discrimination
• Ideal for screening small items at high-traffic checkpoints
• User-friendly design with intuitive interface and customizable settings
• Multi-language support
• Compact design suitable for limited-space installations
• Compliant with international radiation and safety standards

Technical Specifications Overview:

• Tunnel Size: 500mm (W) × 300mm (H)
• Conveyor Speed: 0.22 m/s
• Max Load Capacity: 150 kg
• Penetration Ability: Up to 34 mm of steel
• Wire Resolution: 38 AWG
• Spatial Resolution:

1. Horizontal: 1.0 mm
2. Vertical: 1.0 mm

• Image Processing Functions:

1. Organic/inorganic material recognition
2. Edge enhancement
3. Inverse imaging
4. Pseudo color imaging
5. High and low penetration modes
6. Image zoom, pan, storage, and retrieval

• Monitor: 21.5” high-resolution LCD
• Radiation Safety: Less than 1 μSv/h (compliant with health and safety standards)
• Power Supply: AC 220V ±10%, 50/60Hz
• Operating Temperature: 0°C ~ 45°C
• Relative Humidity: ≤95% (non-condensing)

Applications:

• Government offices and courthouses
• Public venues and events
• Transportation hubs and logistics centers
• Corporate buildings and hotel entrances
• Prisons and correctional facilities
