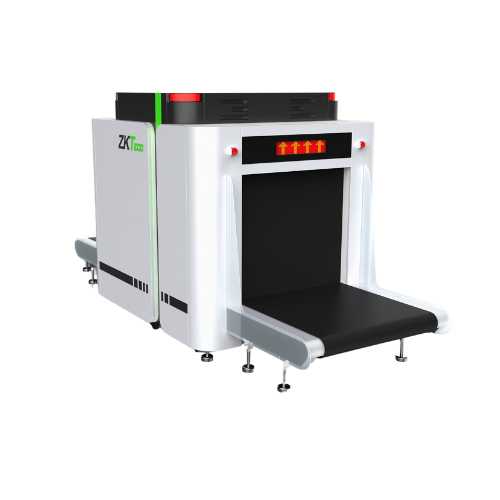

ZKTeco ZKX10080 Dual-Energy X-Ray Inspection System

The ZKTeco ZKX10080 is a powerful, high-capacity dual-energy X-ray inspection system engineered to deliver superior threat detection and object recognition for large baggage, parcels, and cargo. Designed for high-traffic security screening environments, this system combines advanced imaging technology with robust construction for continuous, reliable performance.

Key Features:

• Dual-energy imaging system with automatic color coding for organic, inorganic, and mixed materials
• Large tunnel size of 1000mm × 800mm, suitable for screening large packages and baggage
• High-penetration capability enables identification of concealed threats in dense objects
• Intuitive software with advanced image enhancement tools and real-time processing
• Ergonomic control console with customizable user interface for efficiency and ease of use
• Multi-language support and operator training functions built-in
• Meets all international health and safety standards for radiation emission

Technical Specifications:

• Tunnel Size: 1000mm (W) × 800mm (H)
• Conveyor Speed: 0.20 m/s
• Maximum Load Capacity: 200 kg
• Steel Penetration: Up to 40mm
• Wire Resolution: 40 AWG
• X-ray Generator Orientation: Bottom-up dual energy
• Image Processing Functions: Color/BW, organic/inorganic stripping, super enhancement, high penetration, image recall, image storage
• Image Storage: 100,000+ image archive
• Monitor: High-resolution 21.5” LED monitor
• Radiation Safety: Leakage < 1μSv/h (in compliance with all international standards)
• Operating Temperature: 0°C to 45°C
• Power Supply: 220VAC ±10%, 50/60Hz

Typical Applications:

• Airports and seaports
• Logistics and freight terminals
• Border crossings and customs stations
• Government and critical infrastructure facilities
• Courthouses and correctional facilities
• Event security checkpoints
