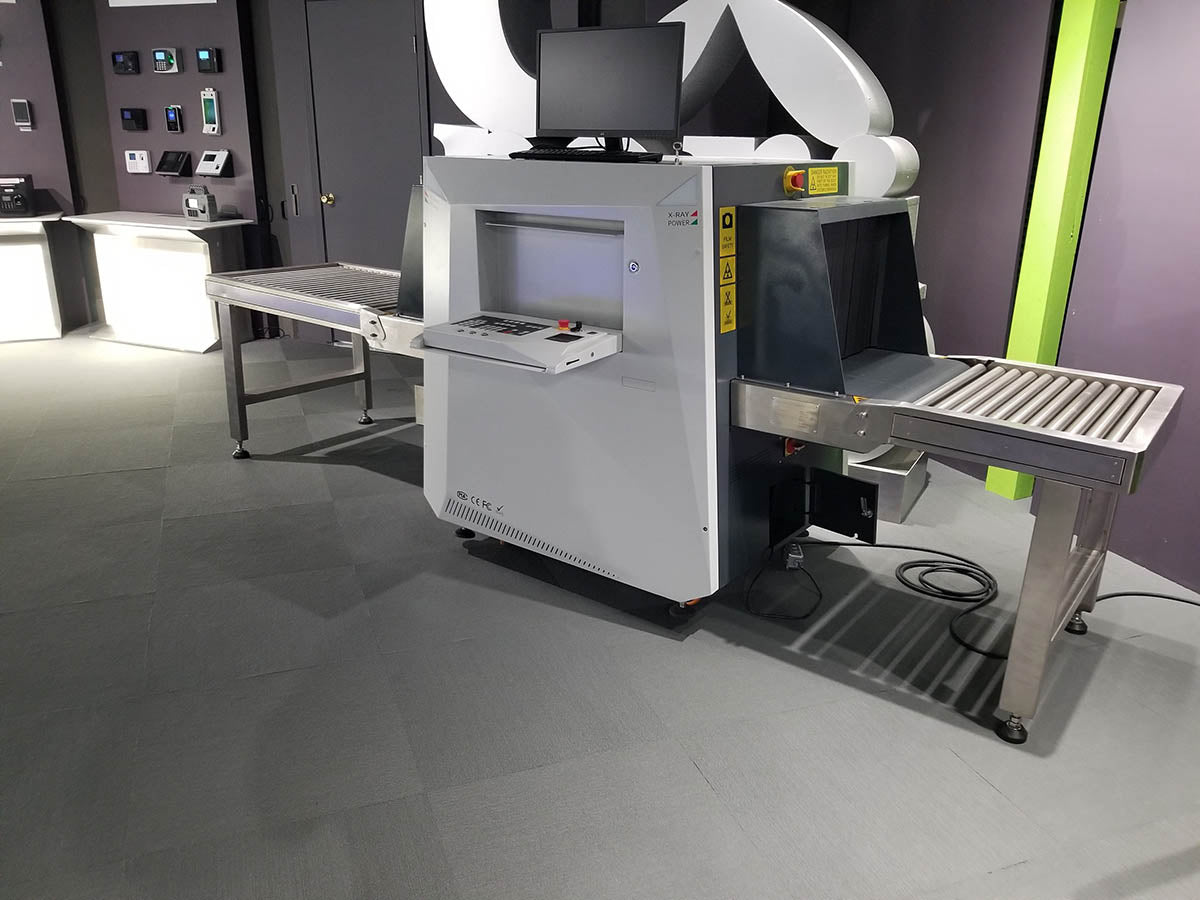

ZKTeco Blade6040 X-Ray Inspection System

The ZKTeco Blade6040 is a compact, high-performance X-ray inspection system designed for security screening of luggage, parcels, and medium-sized packages. This system delivers reliable threat detection with advanced imaging capabilities, making it ideal for use in airports, public buildings, logistics centers, and critical infrastructure environments.

Key Features:

• High-resolution dual-energy imaging for precise material classification (organic, inorganic, and mixed materials)
• Tunnel size of 600mm × 400mm for screening a variety of bag sizes
• Excellent penetration up to 34mm steel for identifying threats in dense objects
• Ergonomic operator interface with real-time image enhancements and intuitive controls
• High conveyor speed to ensure efficient screening in busy environments
• Advanced storage capacity with the ability to archive tens of thousands of images
• Self-diagnostic capabilities with real-time monitoring and remote maintenance support
• Complies with international radiation and safety standards for safe use in public areas

Technical Specifications:

• Tunnel Size: 600mm (W) × 400mm (H)
• Conveyor Speed: 0.22 m/s
• Maximum Conveyor Load: 150 kg
• Steel Penetration: Up to 34mm
• Wire Resolution: 38 AWG (approx. 0.1mm)
• Display: High-resolution 17” LCD monitor
• Image Processing: 24-bit real-time processing with zoom, color enhancement, pseudo color, and edge enhancement
• Radiation Safety: ≤1 μSv/h, compliant with ISO and CE standards
• Operating Temperature: 0°C to 45°C
• Storage Capacity: 100,000+ images
• Power Supply: 220VAC ±10%, 50Hz

Ideal Applications:

• Airports and transportation hubs
• Government and military buildings
• Corporate offices and facilities
• Prisons and correctional institutions
• Logistics and courier companies
• Event security checkpoints
