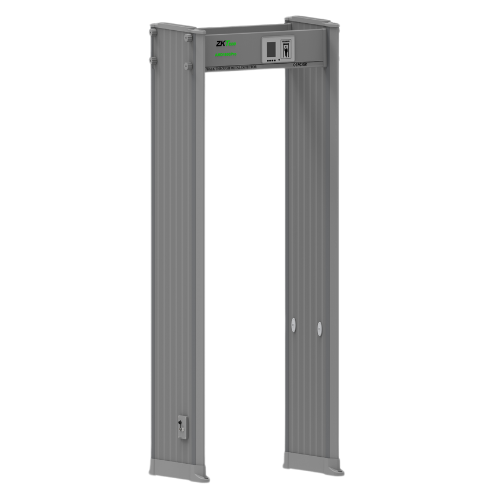

ZKTeco AMD1800 Pro Walk-Through Metal Detector

Product Overview:
The ZKTeco AMD1800 Pro is a high-performance, multi-zone walk-through metal detector engineered to provide accurate, real-time threat detection in high-security environments. Designed with 18 overlapping detection zones and equipped with intelligent location technology, the AMD1800 Pro ensures pinpoint accuracy, exceptional throughput, and enhanced operator control—making it ideal for airports, correctional facilities, government buildings, event venues, and other sensitive sites.

Key Features:

• 18 Detection Zones:
  Allows for full-body scanning with precise identification of the threat location, significantly reducing screening time and operator error.
• High Sensitivity:
  Capable of detecting ferrous and non-ferrous metals, including small weapons or contraband, with adjustable sensitivity levels for each individual zone.
• Intelligent Alarm System:
  Visual and audible alarms activate when metal is detected, with LED indicators on both sides of the unit showing the exact height of the object.
• Advanced Anti-Interference:
  Digital signal processing and filtering technology significantly reduce false alarms and electromagnetic interference, ensuring reliable operation even in electrically noisy environments.
• People Counting & Alarm Statistics:
  Built-in counters track the number of people who pass through and how many alarms are triggered, providing valuable operational data for security teams.
• Modular Design:
  Simplifies transportation, installation, and maintenance. The unit can be assembled or dismantled within minutes.
• User-Friendly Interface:
  Features an intuitive control panel and LCD display for easy configuration, operation, and diagnostics. Password-protected settings prevent unauthorized tampering.
• Safe & Certified:
  Harmless to people with medical devices such as pacemakers and safe for pregnant women. Complies with international safety standards for electromagnetic radiation.

Specifications:

• Detection Zones: 18
• Power Supply: AC 100-240V / 50-60Hz
• Operating Temperature: -20°C to +55°C
• Humidity: <95% (non-condensing)
• Alarm Volume: Adjustable (up to 90 dB)
• Dimensions: Exterior: 2220 mm (H) × 820 mm (W) × 500 mm (D) ; Passage: 2000 mm (H) × 700 mm (W) × 500 mm (D)
• Weight: Approx. 45 kg
• Installation Time: <15 minutes

Ideal Applications:

• Government institutions
• Border control & customs
• Public transportation hubs
• Prisons and detention centers
• Events, stadiums, and entertainment venues
• Educational institutions
• Corporate buildings
