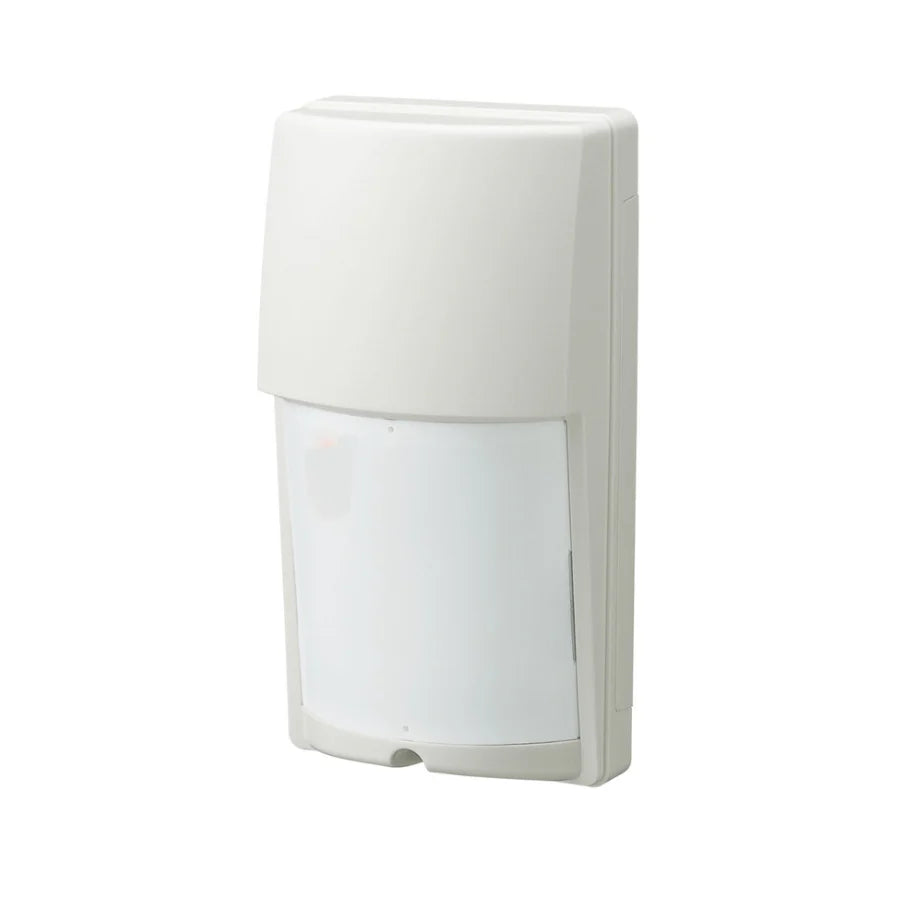

Optex LX-402 Outdoor PIR

The Optex LX-402 is a robust, weatherproof Passive Infrared (PIR) motion detector designed for outdoor applications such as triggering lighting or cameras. With a detection range of 12m x 15m (40ft x 50ft) and a 120° wide field of view, it offers reliable performance in various environmental conditions. The LX-402 features double conductive shielding to minimize interference from external light sources, ensuring accurate detection.

Key Features:

• Detection Range: 12m x 15m (40ft x 50ft) with a 120° wide field of view.
• Shielding: Double conductive shielding to reduce interference from sunlight and headlights.
• Detection Patterns: Selectable Pet Alley or Multi-Level detection patterns.
• Sensitivity Adjustment: Three-position sensitivity switch (High, Medium, Low).
• Pulse Count: Selectable pulse count (Test or 2).
• Day/Night Modes: Built-in light sensor for automatic day and night mode switching.
• Masking Strips: Area-masking strips for customized detection zones.
• Mounting Height: Suitable for mounting heights of 2.5m (8.2ft) for Multi-Level and 1.2m–1.5m (3.9ft–4.9ft) for Pet Alley mode.
• Power Supply: Operates on 10.8–13.2V DC with a maximum current draw of 25mA.
• Operating Temperature: -20°C to +50°C (-4°F to +122°F).
• Humidity: 95% maximum relative humidity.
• IP Rating: IP54 for protection against dust and water ingress.
