IDS 806 Wired Alarm Kit (Includes 4 x Indoor PIRs)

This IDS 8-Zone Wired Alarm Kit is an ideal, affordable security solution for your home or business. Designed for reliability and performance, the system can be linked to your local alarm/security company for professional monitoring via radio or GSM modules. The kit includes everything you need for a complete entry-level setup—perfect for small to medium-sized properties requiring solid perimeter and interior protection.

Kit Features & Specifications:

IDS806 – 8 Zone Control Panel

• 8 Programmable zones
• Separate box tamper zone
• 5 On-board programmable outputs
• Additional arm status output on the keypad
• 1000 Event log memory
• Automatic arming functionality
• Optional tamper by zone identification
• Up/downloadable via IDSwift2 software

Classic Series 8-Zone LED Keypad

• 3 Dedicated emergency keys
• 3 Quick arm mode buttons
• Built-in LED output
• Panic input
• Simple, user-friendly interface

Hikvision Wired Indoor PIR Detectors (18m Range)

• Sleek, modern design for unobtrusive room integration
• Up to 18m volumetric detection coverage
• Digital temperature compensation for accurate detection
• Automatic sensitivity adjustment for stability in changing environments
• 3D optics for improved motion tracking
• Creep-zone protection for areas directly below the sensor
• Selectable EOL resistors for compatibility with most control panels
• Wall and ceiling mountable (1.8m to 2.4m height range)
• Anti-insect interference design
• Wide 9V–16V operating voltage with reverse polarity protection

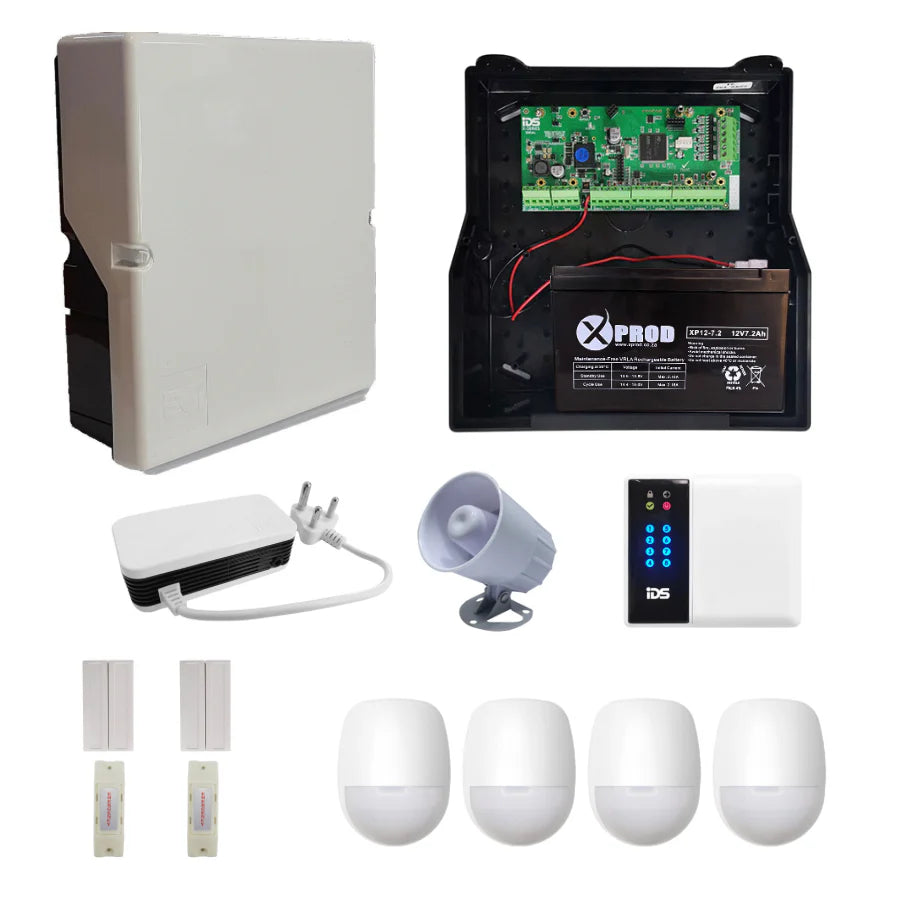

This Kit Includes:

• 1 x IDS 806 Control Panel
• 1 x 8-Zone Classic LED Keypad
• 1 x IDS Wall Mount Transformer
• 1 x 15W Outdoor Siren
• 1 x XPROD 12V 7.2AH Backup Battery
• 4 x Hikvision Wired Indoor PIR Detectors
• 2 x White Magnetic Contacts
• 2 x Fixed Panic Buttons

Please Note: This system supports a maximum of 8 zones only.
