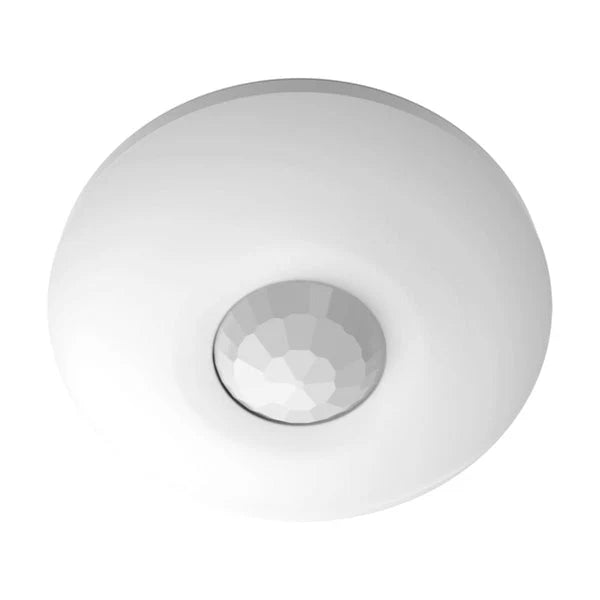

Hikvision DS-PDP18-EG2 Wired Indoor Ceiling-Mount PIR Detector

The Hikvision DS-PDP18-EG2 is a high-performance wired Passive Infrared (PIR) motion detector designed for indoor ceiling-mounted applications. With an 18-meter detection range and an 85.9° field of view, it offers reliable coverage for medium to large indoor spaces. The detector features advanced 3D optics and digital temperature compensation to enhance detection accuracy and reduce false alarms.

Key Features:

• Detection Range: Up to 18 meters with an 85.9° detection angle.
• Advanced Optics: Utilizes 3D optics for precise signal focusing and improved detection.
• Sensitivity Adjustment: Three levels (High, Auto, Low) to adapt to varying environmental conditions.
• Pet Immunity: Supports up to 10 kg with optional pet mask to prevent false alarms from small animals.
• White Light Filter: Capable of filtering up to 6500 lux to minimize interference from ambient light.
• Tamper Protection: Front tamper detection to alert against unauthorized access.
• Power Supply: Operates on 9 to 16 VDC (standard 12 VDC) with a maximum current consumption of 11mA.
• Operating Conditions: Suitable for installation heights between 1.8 to 2.4 meters; operates in temperatures ranging from -10°C to 55°C and humidity levels from 10% to 90%.
• Compact Design: Dimensions of 65.4mm (W) x 86.8mm (H) x 45.5mm (D) and weighs 68g for unobtrusive installation.
